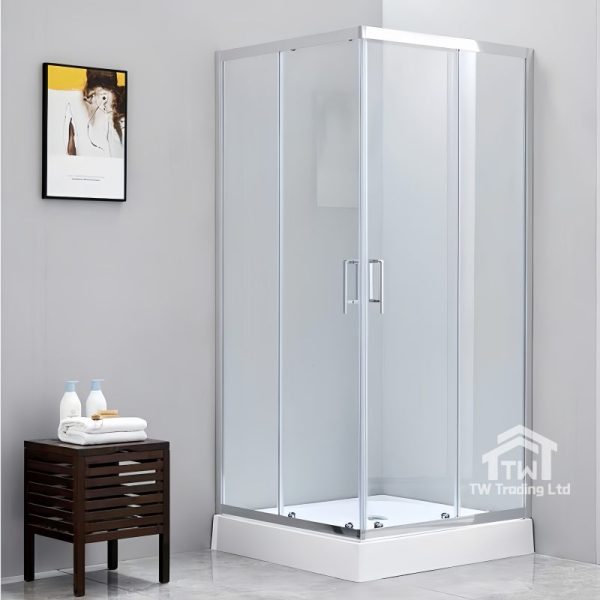

Corner Square Shower Box with Double Sliding Door – DS Series

Corner Square Shower Box with Single Pivot Door – PGM Square Series

Overview

Model: DS 900×900 / 1000×1000

Feature: Double Sliding Doors, 4 Lips Shower Tray, 2-sided Liner in one piece no join

Dimensions:

Glass: 870X870x1900mm / 970x970x1900mm (Adjust 20mm each side)

Liner: 880x880x1900mm / 980x980x1900mm (thickness 2mm)

Tray: 900x900mm / 1000x1000mm (Thickness: 50mm with 4 sides 20mm up stand lips)

Tray waste location: Center or Corner

Material:

Glass: Certified 6mm Thickness Safety Glass AS/NZS 2208 in satin silver frame (aluminium)

Tray: Acrylic

Liner: Acrylic

Colour: Chrome

Shower Box Include:

Glass, wall liner,  and Shower tray (Shower waste is not included)

Warranty:

Glass: 10 years Warranty for general use.

Liner and Shower tray: 2 years Warranty for general use (Warranty void if recommended glue and sealant not used.)

Fittings: 1 year Warranty for general use

Installation and Testing

The installation of this unit must be in accordance with industry standard practices, codes and guidelines. A licensed/registered industry professional must perform all plumbing /electrical works. Products should be pre-inspected on opening and rigorously tested / inspected for compliant performance and appearance immediately upon installation.

Specifications/measurements may change. Positions, measurements in the installation guides should in all situations be checked, re measured before cutting, drilling or other fitting.

All products sold meet NZ Building Code B2 Guarantees and Durability requirements plus all relevant Plumbing and ASNZS Standards.

Tray and Liner Installation: Please click here
